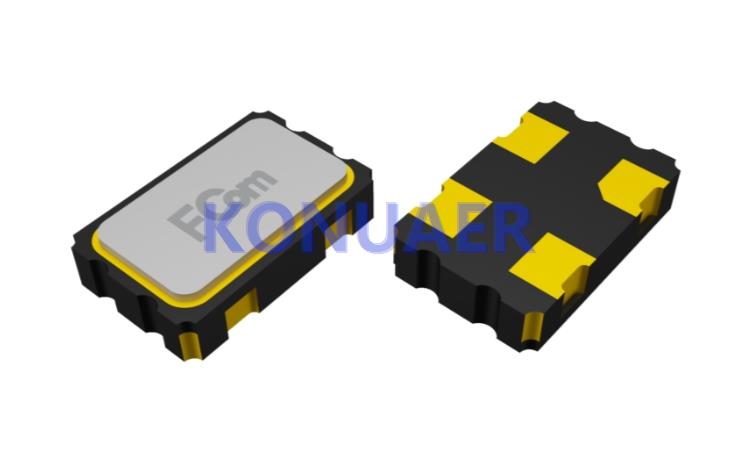

FCO5K03276825CFP00,日产进口富士通晶振,FCO-5K晶振

原厂型号 Original model ：	FCO5K03276825CFP00
Manufacturer品牌	Fujicom富士通有源晶振
Series型号	FCO-5K
Type 类型	XO (Standard)
Frequency 频率	32.768 kHz
输出方式 Output：	CMOS
Voltage - Supply电压	2.5V
Frequency Stability频率稳定度	±50ppm
Size / Dimension 尺寸	5.00mm x 3.20mm

订购热线：0755-27838351

FCO5K03276825CFP00,日产进口富士通晶振,FCO-5K晶振

原厂型号 Original model ：	FCO5K03276825CFP00	品牌 brand ：	富士通晶振
Manufacturer品牌	日本富士通晶振	Operating Temperature温度	-10°C ~ 60°C
Series型号	FCO-5K	Current - Supply (Max)	3mA
Type 类型	XO (Standard)	Package Height高度	1.30mm
Frequency 频率	32.768 kHz	Termination 脚位	4 pad
输出方式 Output：	CMOS	Package Type 封装类型	4-SMD
Voltage - Supply电压	2.5V	Packaging 包装	Tape and Reel
Frequency Stability频率稳定度	±50ppm	安装方式 Installation ：	Surface mount
Size / Dimension 尺寸	5032贴片晶振	最小包装数 MPQ ：	-

FCO5K03276825CFP00,日产进口富士通晶振,FCO-5K晶振

FCO5K03276825CFP00	Fujicom富士通晶振	FCO-5K	XO (Standard)	32.768 kHz	CMOS	2.5V	±50ppm
FCO5C052000A3CBY00	Fujicom富士通晶振	FCO-5C	XO (Standard)	52 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C015500A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	4.352 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO7C002034A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	29.48 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO5C010244A3CCU00	Fujicom富士通晶振	FCO-5C	XO (Standard)	10.244 MHz	CMOS	1.8V ~ 3.3V	±20ppm
FCO5C012886A3CBY00	Fujicom富士通晶振	FCO-5C	XO (Standard)	12.886 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C023264A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	8.25 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO5C012660A3CCU00	Fujicom富士通晶振	FCO-5C	XO (Standard)	12.66 MHz	CMOS	1.8V ~ 3.3V	±20ppm
FCO7C011955A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	25.00075 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO5C04000033CCT00	Fujicom富士通晶振	FCO-5C	XO (Standard)	40 MHz	CMOS	3.3V	±20ppm
FCO5C031330A3CBY00	Fujicom富士通晶振	FCO-5C	XO (Standard)	31.33 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C026650A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	34.7478 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO5C014400A3CBY00	Fujicom富士通晶振	FCO-5C	XO (Standard)	14.4 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C043750A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	16.0028 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C004999A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	14.74556 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO5C01280033CGY00	Fujicom富士通晶振	FCO-5C	XO (Standard)	12.8 MHz	CMOS	3.3V	±100ppm
FCO7C039283A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	14.21818 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO7C050486A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	20.0016 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO7C027397A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	10.736 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO5C010041A3CBY00	Fujicom富士通晶振	FCO-5C	XO (Standard)	10.0413 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C049000A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	49.44 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO5C00400033CFE00	Fujicom富士通晶振	FCO-5C	XO (Standard)	4 MHz	CMOS	3.3V	±50ppm
FCO7C025600A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	33.94515 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C049436A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	16.89458 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO7C001024A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	23.75 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO5C014080A3CBY00	Fujicom富士通晶振	FCO-5C	XO (Standard)	14.08 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C013125A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	3.1152 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO7C050688A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	20.048 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO7C027428A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	35.795 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C040250A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	47.032 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C049570A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	49.9008 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO5K03276818CFP00	Fujicom富士通晶振	FCO-5K	XO (Standard)	32.768 kHz	CMOS	1.8V	±50ppm
FCO7C040433A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	47.3333 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C050136A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	50.1333 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C002250A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	29.5 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C019062A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	28.631 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO5C013081A3CCU00	Fujicom富士通晶振	FCO-5C	XO (Standard)	13.081 MHz	CMOS	1.8V ~ 3.3V	±20ppm
FCO5C01400025CFE00	Fujicom富士通晶振	FCO-5C	XO (Standard)	14 MHz	CMOS	2.5V	±50ppm
FCO7C049664A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	49.96 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C050126A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	18.75 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO7C040975A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	47.92323 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO5C015700A3CCU00	Fujicom富士通晶振	FCO-5C	XO (Standard)	15.7 MHz	CMOS	1.8V ~ 3.3V	±20ppm
FCO7C006750A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	50.4233 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C012902A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	2.8 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO5C031948A3CBY00	Fujicom富士通晶振	FCO-5C	XO (Standard)	31.9488 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C008467A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	22.66 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C032000A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	12.688656 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO5C025562A3CCU00	Fujicom富士通晶振	FCO-5C	XO (Standard)	25.5625 MHz	CMOS	1.8V ~ 3.3V	±20ppm
FCO7C008295A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	22.5972 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C048600A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	16.58 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO7C027110A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	35.4686 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C037211A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	43.295 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO7C024975A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	33.178 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C025125A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	9.9 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C034560A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	13.48352 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO7C031996A3CEI00	Fujicom富士通晶振	FCO-7C	XO (Standard)	40.00833 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO7C003502A3CBY00	Fujicom富士通晶振	FCO-7C	XO (Standard)	12.11876 MHz	CMOS	1.8V ~ 3.3V	±30ppm
FCO5C001500A3CCU00	Fujicom富士通晶振	FCO-5C	XO (Standard)	1.5 MHz	CMOS	1.8V ~ 3.3V	±20ppm
FCO5C011955A3CBY00	Fujicom富士通晶振	FCO-5C	XO (Standard)	11.955 MHz	CMOS	1.8V ~ 3.3V	±15ppm
FCO5C010140A3CCU00	Fujicom富士通晶振	FCO-5C	XO (Standard)	10.1405 MHz	CMOS	1.8V ~ 3.3V	±20ppm
