ECS-1618-192-BN-TR,ECS有源晶振,ECS-1618有源四脚贴片晶振

原厂型号 Original model ：	ECS-1618-192-BN-TR
Manufacturer品牌	ECS有源晶振
Series型号	ECS-1618
Type 类型	XO (Standard)
Frequency 频率	19.2MHz
输出方式 Output：	CMOS
Voltage - Supply电压	1.8V
Frequency Stability频率稳定度	±50ppm

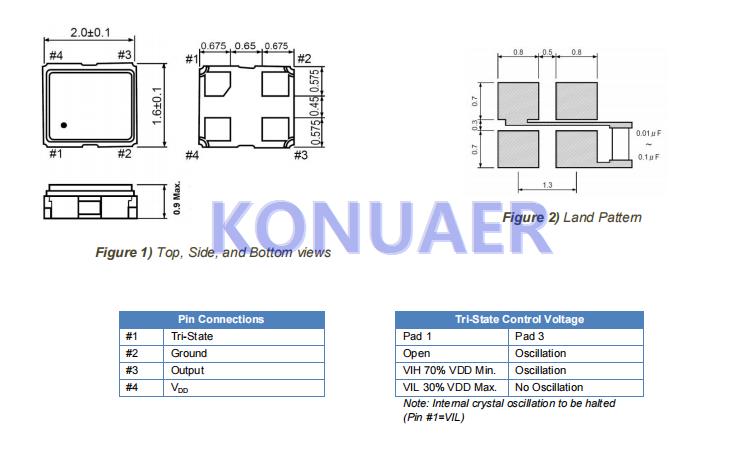

Size / Dimension 尺寸	2.00mm x 1.60mm

订购热线：0755-27838351

ECS-1618-192-BN-TR,ECS有源晶振,ECS-1618有源四脚贴片晶振

原厂型号 Original model ：	ECS-1618-192-BN-TR	品牌 brand ：	-
Manufacturer品牌	ECS有源晶振	Operating Temperature温度	-40°C ~ 85°C
Series型号	ECS-1618	Current - Supply (Max)	2.5mA
Type 类型	XO (Standard)	Package Height高度	0.90mm
Frequency 频率	19.2MHz	Termination 脚位	4 pad
输出方式 Output：	CMOS输出晶振	Package Type 封装类型	4-SMD
Voltage - Supply电压	1.8V	Packaging 包装	Tape and Reel
Frequency Stability频率稳定度	±50ppm	安装方式 Installation ：	Surface mount
Size / Dimension 尺寸	2.00mm x 1.60mm	最小包装数 MPQ ：	-

ECS-1618-192-BN-TR,ECS有源晶振,ECS-1618有源四脚贴片晶振

ECS-100A-200	ECS-100	XO (Standard)	20MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-283.2	ECS-100石英晶振	XO (Standard)	28.322MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-180	ECS-100	XO (Standard)	18MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-162.5	ECS-100	XO (Standard)	16.257MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-325.1	ECS-100	XO (Standard)	32.514MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-010	ECS-100	XO (Standard)	1MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-080	ECS-100	XO (Standard)	8MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-049	ECS-100	XO (Standard)	4.9152MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-040	ECS-100	XO (Standard)	4MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-160	ECS-100	XO (Standard)	16MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-250	ECS-100	XO (Standard)	25MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-051	ECS-100	XO (Standard)	5.0688MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-018	ECS-100	XO (Standard)	1.8432MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-196.6	ECS-100	XO (Standard)	19.6608MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-020	ECS-100	XO (Standard)	2MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-480	ECS-100	XO (Standard)	48MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-100	ECS-100	XO (Standard)	10MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-400	ECS-100	XO (Standard)	40MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-073	ECS-100	XO (Standard)	7.3728MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-184	ECS-100	XO (Standard)	18.432MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-143	ECS-100	XO (Standard)	14.31818MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-012.2	ECS-100	XO (Standard)	1.2288MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-050	ECS-100	XO (Standard)	5MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-036	ECS-100	XO (Standard)	3.6864MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-147.4	ECS-100	XO (Standard)	14.7456MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-120	ECS-100	XO (Standard)	12MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-240	ECS-100	XO (Standard)	24MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-320	ECS-100	XO (Standard)	32MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-060	ECS-100	XO (Standard)	6MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-061	ECS-100	XO (Standard)	6.144MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-251.7	ECS-100	XO (Standard)	25.175MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-500	ECS-100	XO (Standard)	50MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-098.3	ECS-100	XO (Standard)	9.8304MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-350	ECS-100	XO (Standard)	35MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-092.1	ECS-100	XO (Standard)	9.216MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-035	ECS-100	XO (Standard)	3.579545MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-640	ECS-100	XO (Standard)	64MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-110.5	ECS-100	XO (Standard)	11.0592MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100A-300	ECS-100	XO (Standard)	30MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100A-024	ECS-100	XO (Standard)	2.4576MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100A-666	ECS-100	XO (Standard)	66.666MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100AX-040	ECS-100X	XO (Standard)	4MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100AX-020	ECS-100X	XO (Standard)	2MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100AX-147.4	ECS-100X	XO (Standard)	14.7456MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100AX-160	ECS-100X	XO (Standard)	16MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100AX-010	ECS-100X	XO (Standard)	1MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100AX-200	ECS-100X	XO (Standard)	20MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100AX-500	ECS-100X	XO (Standard)	50MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100AX-110.5	ECS-100X	XO (Standard)	11.0592MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100AX-018	ECS-100X	XO (Standard)	1.8432MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100AX-640	ECS-100X	XO (Standard)	64MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100AX-100	ECS-100X	XO (Standard)	10MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100AX-060	ECS-100X	XO (Standard)	6MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100AX-184	ECS-100X	XO (Standard)	18.432MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100AX-320	ECS-100X	XO (Standard)	32MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100AX-061	ECS-100X	XO (Standard)	6.144MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100AX-098.3	ECS-100X	XO (Standard)	9.8304MHz	TTL	5V	±100ppm	0°C ~ 70°C	30mA
ECS-100AX-036	ECS-100X	XO (Standard)	3.6864MHz	TTL	5V	±100ppm	0°C ~ 70°C	15mA
ECS-100AX-300	ECS-100X	XO (Standard)	30MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
ECS-100AX-480	ECS-100X	XO (Standard)	48MHz	TTL	5V	±100ppm	0°C ~ 70°C	70mA
