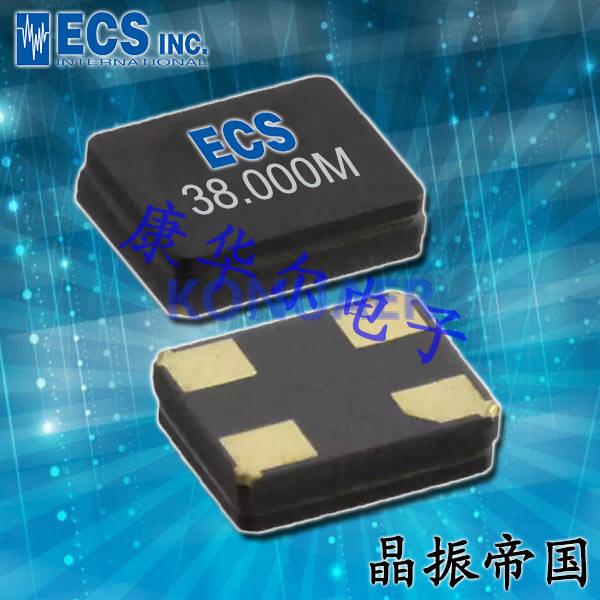

ECS-120-20-33-TR晶振,ECS无源晶振,ECX-32石英晶振

原厂型号 Original model ：	ECS-120-20-33-TR
品牌 brand ：	ECS无源晶振
型号名称 Model name：	ECX-32
Type 系列：	MHz Crystal
频率 frequency ：	12MHz
Frequency Stability频率稳定度	±50ppm
frequency tolerance频率容差	±50ppm
Load capacitance 负载电容	20pF
Size / Dimension 尺寸	3.20mm x 2.50mm

订购热线：0755-27838351

ECS-120-20-33-TR晶振,ECS无源晶振,ECX-32石英晶振

原厂型号 Original model ：	ECS-120-20-33-TR	品牌 brand ：	ECS伊西斯无源晶振
品牌 brand ：	ECS无源晶振	ESR（等效串联电阻）ESR (Equivalent Series Resistance)	100 Ohm
型号名称 Model name：	ECX-32	温度 Operating Temperature	-20°C ~ 70°C
Type 系列：	MHz Crystal	脚位 Termination：	4 pad
频率 frequency ：	12MHz	封装类型 Package Type：	4-SMD
Frequency Stability频率稳定度	±50ppm	高度 Package Height：	0.8mm
frequency tolerance频率容差	±50ppm	最小包装数 MPQ ：	-
Load capacitance 负载电容	20pF	包装 Packaging：	Tape and Reel
Size / Dimension 尺寸	3225晶振	安装方式 Mounting Style：	Surface Mount

ECS-120-20-33-TR晶振,ECS无源晶振,ECX-32石英晶振

ECS-120-20-33-TR	ECX-32	MHz Crystal	12MHz	±50ppm	±50ppm	20pF	100 Ohm
ECS-130-20-33-CKM-TR	ECX-32	MHz Crystal	13MHz	±10ppm	±10ppm	20pF	100 Ohm
ECS-160-20-33-CKM-TR	ECX-32	MHz Crystal	16MHz	±10ppm	±10ppm	20pF	80 Ohm
ECS-160-20-33-DU-TR	ECX-32	MHz Crystal	16MHz	±100ppm	±50ppm	20pF	80 Ohm
ECS-160-20-33-TR	ECX-32	MHz Crystal	16MHz	±50ppm	±50ppm	20pF	80 Ohm
ECS-162.57-20-33-CKM-TR	ECX-32	MHz Crystal	16.257MHz	±10ppm	±10ppm	20pF	80 Ohm
ECS-162.57-20-33-DU-TR	ECX-32	MHz Crystal	16.257MHz	±100ppm	±50ppm	20pF	80 Ohm
ECS-162.57-20-33-TR	ECX-32	MHz Crystal	16.257MHz	±50ppm	±50ppm	20pF	80 Ohm
ECS-184-20-33-CKM-TR	ECX-32	MHz Crystal	18.432MHz	±10ppm	±10ppm	20pF	80 Ohm
ECS-184-20-33-DU-TR	ECX-32	MHz Crystal	18.432MHz	±100ppm	±50ppm	20pF	80 Ohm
ECS-184-20-33-TR	ECX-32	MHz Crystal	18.432MHz	±50ppm	±50ppm	20pF	80 Ohm
ECS-196-20-33-TR	ECX-32	MHz Crystal	19.6608MHz	±50ppm	±50ppm	20pF	80 Ohm
ECS-200-20-33-CKM-TR	ECX-32	MHz Crystal	20MHz	±10ppm	±10ppm	20pF	60 Ohm
ECS-200-20-33-DU-TR	ECX-32	MHz Crystal	20MHz	±100ppm	±50ppm	20pF	60 Ohm
ECS-200-20-33-TR	ECX-32	MHz Crystal	20MHz	±50ppm	±50ppm	20pF	60 Ohm
ECS-240-20-33-CKM-TR	ECX-32	MHz Crystal	24MHz	±10ppm	±10ppm	20pF	40 Ohm
ECS-240-20-33-DU-TR	ECX-32	MHz Crystal	24MHz	±100ppm	±50ppm	20pF	40 Ohm
ECS-240-20-33-TR	ECX-32	MHz Crystal	24MHz	±50ppm	±50ppm	20pF	40 Ohm
ECS-250-20-33-CKM-TR	ECX-32	MHz Crystal	25MHz	±10ppm	±10ppm	20pF	40 Ohm
ECS-250-20-33-DU-TR	ECX-32	MHz Crystal	25MHz	±100ppm	±50ppm	20pF	40 Ohm
ECS-250-20-33-TR	ECX-32	MHz Crystal	25MHz	±50ppm	±50ppm	20pF	40 Ohm
ECS-270-20-33-CKM-TR	ECX-32	MHz Crystal	27MHz	±10ppm	±10ppm	20pF	40 Ohm
ECS-270-20-33-DU-TR	ECX-32	MHz Crystal	27MHz	±100ppm	±50ppm	20pF	40 Ohm
ECS-270-20-33-TR	ECX-32	MHz Crystal	27MHz	±50ppm	±50ppm	20pF	40 Ohm
ECS-300-20-33-TR	ECX-32	MHz Crystal	30MHz	±50ppm	±50ppm	20pF	40 Ohm
ECS-300-S-33-TR	ECX-32	MHz Crystal	30MHz	±50ppm	±50ppm	Series	40 Ohm
ECS-320-20-33-CKM-TR	ECX-32	MHz Crystal	32MHz	±10ppm	±10ppm	20pF	40 Ohm
ECS-320-20-33-DU-TR	ECX-32	MHz Crystal	32MHz	±100ppm	±50ppm	20pF	40 Ohm
ECS-320-20-33-TR	ECX-32	MHz Crystal	32MHz	±50ppm	±50ppm	20pF	40 Ohm
ECS-320-S-33-TR	ECX-32	MHz Crystal	32MHz	±50ppm	±50ppm	Series	40 Ohm
ECS-360-20-33-TR	ECX-32	MHz Crystal	36MHz	±50ppm	±50ppm	20pF	40 Ohm
ECS-360-S-33-TR	ECX-32	MHz Crystal	36MHz	±50ppm	±50ppm	Series	40 Ohm
ECS-400-20-33-TR	ECX-32	MHz Crystal	40MHz	±50ppm	±50ppm	20pF	40 Ohm
ECS-400-S-33-TR	ECX-32	MHz Crystal	40MHz	±50ppm	±50ppm	Series	40 Ohm
ECS-480-20-33-CKM-TR	ECX-32	MHz Crystal	48MHz	±10ppm	±10ppm	20pF	40 Ohm
ECS-480-20-33-DU-TR	ECX-32	MHz Crystal	48MHz	±100ppm	±50ppm	20pF	40 Ohm
ECS-480-20-33-TR	ECX-32	MHz Crystal	48MHz	±50ppm	±50ppm	20pF	40 Ohm
ECS-480-S-33-TR	ECX-32	MHz Crystal	48MHz	±50ppm	±50ppm	Series	40 Ohm
ECS-120-18-33Q-DS	ECX-33Q	MHz Crystal	12MHz	±100ppm	±30ppm	18pF	100 Ohm
ECS-135.6-12-33Q-DS	ECX-33Q	MHz Crystal	13.56MHz	±100ppm	±30ppm	12pF	100 Ohm
ECS-143-18-33Q-DS	ECX-33Q	MHz Crystal	14.31818MHz	±100ppm	±30ppm	18pF	100 Ohm
ECS-160-18-33Q-DS	ECX-33Q	MHz Crystal	16MHz	±100ppm	±30ppm	18pF	80 Ohm
ECS-184-18-33Q-DS	ECX-33Q	MHz Crystal	18.432MHz	±100ppm	±30ppm	18pF	80 Ohm
ECS-196.6-18-33Q-DS	ECX-33Q	MHz Crystal	19.6608MHz	±100ppm	±30ppm	18pF	80 Ohm
ECS-200-18-33Q-DS	ECX-33Q	MHz Crystal	20MHz	±100ppm	±30ppm	18pF	60 Ohm
ECS-240-18-33Q-DS	ECX-33Q	MHz Crystal	24MHz	±100ppm	±30ppm	18pF	40 Ohm
ECS-250-18-33Q-DS	ECX-33Q	MHz Crystal	25MHz	±100ppm	±30ppm	18pF	40 Ohm
ECS-260-18-33Q-DS	ECX-33Q	MHz Crystal	26MHz	±100ppm	±30ppm	18pF	40 Ohm
ECS-270-18-33Q-DS	ECX-33Q	MHz Crystal	27MHz	±100ppm	±30ppm	18pF	40 Ohm
ECS-300-18-33Q-DS	ECX-33Q	MHz Crystal	30MHz	±100ppm	±30ppm	18pF	40 Ohm
ECS-320-18-33Q-DS	ECX-33Q	MHz Crystal	32MHz	±100ppm	±30ppm	18pF	40 Ohm
ECS-400-18-33Q-DS	ECX-33Q	MHz Crystal	40MHz	±100ppm	±30ppm	18pF	40 Ohm
ECS-.327-12.5-34S-TR	ECX-34S	kHz Crystal (Tuning Fork)	32.768kHz	-	±20ppm	12.5pF	70 kOhm
ECS-.327-6-34S-TR	ECX-34S	kHz Crystal (Tuning Fork)	32.768kHz	-	±20ppm	6pF	70 kOhm
ECS-.327-12.5-39-TR	ECX-39	kHz Crystal (Tuning Fork)	32.768kHz	-	±20ppm	12.5pF	70 kOhm
ECS-100-S-7S-TR	ECX-3S	MHz Crystal	10MHz	±50ppm	±30ppm	Series	60 Ohm
ECS-110.5-20-7S-TR	ECX-3S	MHz Crystal	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm
ECS-110.5-S-7S-TR	ECX-3S	MHz Crystal	11.0592MHz	±50ppm	±30ppm	Series	60 Ohm
ECS-120-18-7S-TR	ECX-3S	MHz Crystal	12MHz	±50ppm	±30ppm	18pF	60 Ohm
ECS-120-32-7S-TR	ECX-3S	MHz Crystal	12MHz	±50ppm	±30ppm	32pF	60 Ohm
